1.4 Gaussian Elimination to find the Inverse of a square matrix

A linear system is said to be square if the number of equations matches the number of unknowns. If the system $A x = b$ is square, then the coefficient matrix, $A$, is square. If $A$ has an inverse, then the solution to the system $A x = b$ can be found by multiplying both sides by $A ^{−1}$

$Ax=b$

$A^{-1}Ax=A^{-1}b$

$x=A^{-1}b$

If $A$ is an invertible $n$ by $n$ matrix, then the system $A x = b$ has a unique solution for every $n$‐vector $b$, and this solution equals $A ^{−1} b$.

Since the determination of $A^{ −1}$ typically requires more calculation than performing Gaussian elimination and back substitution, this is not necessarily an improved method of solving $A x = b$ (And, of course, if $A$ is not square, then it has no inverse, so this method is not even an option for non square systems.).However, if the coefficient matrix $A$ is square, and if $A ^{−1}$ is known or the solution of $A x = b$ is required for several different $b$'s, then this method is indeed useful, from both a theoretical and a practical point of view.

The elementary row operations that characterize Gauss‐Jordan elimination can be applied to compute the inverse of a square matrix.

If $E$ is the elementary matrix that results when a particular elementary row operation is performed on $I$(Identity Matrix), then the product $EA$ is equal to the matrix that would result if that same elementary row operation were applied to $A$. In other words, an elementary row operation on a matrix $A$ can be performed by multiplying $A$ on the left by the corresponding elementary matrix.

Thus the sequence of elementary matrix product will give the identity matrix $E_n...E_2E_1A=I$. where the elementary transformation matrix $E_n....E_2E_1$ will represent $A^{-1}$

We can solve the equation using an augmented notation

$[A|I_n] \ldots  \ldots  [I_n|A^{-1}]$

This means that , if we bring the augmented equation system into reduced row echelon form, we can read out the inverse on the right hand side of the equation system.Hence determining the inverse of a matrix is equivalent to solving system of linear equations.

Example:

Determine the inverse of  the matrix

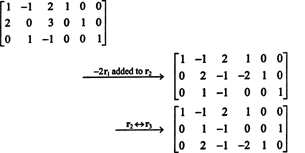

The augmented matrix is

Since the transformation [ A | I] → [ I | A −1] reads

So the inverse of the matrix A is

Python Program

# Importing NumPy Library

import numpy as np

import sys

# Reading order of matrix

n = int(input('Enter order of matrix: '))

# Making numpy array of n x 2n size and initializing

# to zero for storing augmented matrix

a = np.zeros((n,2*n))

# Reading matrix coefficients

print('Enter Matrix Coefficients:')

for i in range(n):

    for j in range(n):

        a[i][j] = float(input( 'a['+str(i)+']['+ str(j)+']='))

# Augmenting Identity Matrix of Order n

for i in range(n):

    for j in range(n):

        if i == j:

            a[i][j+n] = 1

# Applying Guass Jordan Elimination

for i in range(n):

    if a[i][i] == 0.0:

        sys.exit('Divide by zero detected!')



    for j in range(n):

        if i != j:

            ratio = a[j][i]/a[i][i]

            for k in range(2*n):

                a[j][k] = a[j][k] - ratio * a[i][k]

# Row operation to make principal diagonal element to 1

for i in range(n):

    divisor = a[i][i]

    for j in range(2*n):

        a[i][j] = a[i][j]/divisor

# Displaying Inverse Matrix

print('\nINVERSE MATRIX IS:')

for i in range(n):

    for j in range(n, 2*n):

        print(a[i][j], end='\t')

    print()

output

Enter order of matrix: 4
Enter Matrix Coefficients:
a[0][0]=1
a[0][1]=0
a[0][2]=2
a[0][3]=0
a[1][0]=1
a[1][1]=1
a[1][2]=0
a[1][3]=0
a[2][0]=1
a[2][1]=2
a[2][2]=0
a[2][3]=1
a[3][0]=1
a[3][1]=1
a[3][2]=1
a[3][3]=1

INVERSE MATRIX IS:
-1.0	2.0	-2.0	2.0
1.0	-1.0	2.0	-2.0
1.0	-1.0	1.0	-1.0
-1.0	0.0	-1.0	2.0

sympy code

from sympy import Matrix

M = Matrix(4, 4, [1, 0,0, 1, 0, 2, 1, 2, 2,1,0,1,2,0,1,4])

print(M.inv())

Determine the inverses of the following matrix if possible ( university question)

$\begin{bmatrix} 1 & 0 & 1 & 0\\ 0 & 1 & 1 & 0\\ 1 & 1& 0 & 1\\ 1 & 1& 1 & 0 \end{bmatrix}$


Augmented matrix $AI$
$\begin{bmatrix} 1 & 0 & 1 & 0 &|& 1 &0 & 0 & 0\\ 0 & 1 & 1 & 0&|& 0 & 1 & 0 & 0\\ 1 & 1& 0 & 1&| & 0 & 0 & 1 & 0\\ 1 & 1& 1 & 0 &|& 0 & 0 & 0 & 1 \end{bmatrix}$


$R_3=R_3-R_1, R_4=R_4-R_1$
$\begin{bmatrix} 1 & 0 & 1 & 0 &|& 1 &0 & 0 & 0\\ 0 & 1 & 1 & 0&|& 0 & 1 & 0 & 0\\ 0 & 1& -1 & 1&| & -1 & 0 & 1 & 0\\ 0 & 1& 0 & 0 &|& -1 & 0 & 0 & 1 \end{bmatrix}$


$R_2=R_2-R_4, R_3=R_3-R_4$
$\begin{bmatrix} 1 & 0 & 1 & 0 &|& 1 &0 & 0 & 0\\ 0 & 0 & 1 & 0&|& 1 & 1 & 0 & -1\\ 0 & 0& -1 & 1&| & 0 & 0 & 1 & -1\\ 0 & 1& 0 & 0 &|& -1 & 0 & 0 & 1 \end{bmatrix}$


Swap $R_2$ and $R_4$$\begin{bmatrix} 1 & 0 & 1 & 0 &|& 1 &0 & 0 & 0\\ 0 & 1& 0 & 0 &|& -1 & 0 & 0 & 1\\ 0 & 0& -1 & 1&| & 0 & 0 & 1 & -1\\ 0 & 0 & 1 & 0&|& 1 & 1 & 0 & -1\\ \end{bmatrix}$


$R_1=R_1-R_4$, $R_3=R_3+R_4$$\begin{bmatrix} 1 & 0 & 0 & 0 &|& 0 &-1 & 0 & 1\\ 0 & 1& 0 & 0 &|& -1 & 0 & 0 & 1\\ 0 & 0& 0 & 1&| & 1 & 1 & 1 & -2\\ 0 & 0 & 1 & 0&|& 1 & 1 & 0 & -1\\ \end{bmatrix}$


swap $R_3$ and $R_4$$\begin{bmatrix} 1 & 0 & 0 & 0 &|& 0 &-1 & 0 & 1\\ 0 & 1& 0 & 0 &|& -1 & 0 & 0 & 1\\ 0 & 0 & 1 & 0&|& 1 & 1 & 0 & -1\\ 0 & 0& 0 & 1&| & 1 & 1 & 1 & -2\\ \end{bmatrix}$


So the inverse is$\begin{bmatrix} 0 &-1 & 0 & 1\\ -1 & 0 & 0 & 1\\ 1 & 1 & 0 & -1\\ 1 & 1 & 1 & -2\\ \end{bmatrix}$

Determine the inverses of the following matrix using Gaussian elimination method.Show all steps( university question)

$\begin{bmatrix} 1 & 0 & 0 & 1\\ 0 & 2 & 1 & 2\\ 2 & 1& 0 & 1\\ 2 & 0& 1 & 4 \end{bmatrix}$

Augmented matrix $AI$
$\begin{bmatrix} 1 & 0 & 0 & 1 &|& 1 &0 & 0 & 0\\ 0 & 2 & 1 & 2&|& 0 & 1 & 0 & 0\\ 2 & 1& 0 & 1&| & 0 & 0 & 1 & 0\\ 2& 0& 1 & 4 &|& 0 & 0 & 0 & 1 \end{bmatrix}$

$R2=R2/2$
$R3=R1 \times -2 + R3$
$R4=R1 \times -2 + R4$
$\begin{bmatrix} 1 & 0 & 0 & 1 &|& 1 &0 & 0 & 0\\ 0 &1 & 1/2 & 1&|& 0 & 1/2 & 0 & 0\\ 0 & 1& 0 & -1&| & -2 & 0 & 1 & 0\\ 0& 0& 1 & 2 &|& -2 & 0 & 0 & 1 \end{bmatrix}$


$R3=R3-R2$
$\begin{bmatrix} 1 & 0 & 0 & 1 &|& 1 &0 & 0 & 0\\ 0 &1 & 1/2 & 1&|& 0 & 1/2 & 0 & 0\\ 0 & 0& -1/2 & -2&| & -2 &-1/2 & 1 & 0\\ 0& 0& 1 & 2 &|& -2 & 0 & 0 & 1 \end{bmatrix}$


$R3=R3 \times -2$
$\begin{bmatrix} 1 & 0 & 0 & 1 &|& 1 &0 & 0 & 0\\ 0 &1 & 1/2 & 1&|& 0 & 1/2 & 0 & 0\\ 0 & 0&1 & 4&| & 4 &1 & -2 & 0\\ 0& 0& 1 & 2 &|& -2 & 0 & 0 & 1 \end{bmatrix}$


$R4=R4-R3$
$\begin{bmatrix} 1 & 0 & 0 & 1 &|& 1 &0 & 0 & 0\\ 0 &1 & 1/2 & 1&|& 0 & 1/2 & 0 & 0\\ 0 & 0&1 & 4&| & 4 &1 & -2 & 0\\ 0& 0& 0 & -2 &|& -6 & -1 & 2& 1 \end{bmatrix}$


$R4=R4/-2$
$\begin{bmatrix} 1 & 0 & 0 & 1 &|& 1 &0 & 0 & 0\\ 0 &1 & 1/2 & 1&|& 0 & 1/2 & 0 & 0\\ 0 & 0&1 & 4&| & 4 &1 & -2 & 0\\ 0& 0& 0 & 1 &|& 3 & 1/2 & -1& -1/2 \end{bmatrix}$


$R1=R1-R4$
$\begin{bmatrix} 1 & 0 & 0 & 0 &|& -2 &-1/2 & 1 & 1/2\\ 0 &1 & 1/2 & 1&|& 0 & 1/2 & 0 & 0\\ 0 & 0&1 & 4&| & 4 &1 & -2 & 0\\ 0& 0& 0 & 1 &|& 3 & 1/2 & -1& -1/2 \end{bmatrix}$


$R2=R3 \times -1/2 +R2$
$\begin{bmatrix} 1 & 0 & 0 & 0 &|& -2 &-1/2 & 1 & 1/2\\ 0 &1 & 0 & -1&|& -2& 0 & 1 & 0\\ 0 & 0&1 & 4&| & 4 &1 & -2 & 0\\ 0& 0& 0 & 1 &|& 3 & 1/2 & -1& -1/2 \end{bmatrix}$


$R2=R2 +R4$
$\begin{bmatrix} 1 & 0 & 0 & 0 &|& -2 &-1/2 & 1 & 1/2\\ 0 &1 & 0 & 0&|& 1& 1/2 &0 & -1/2\\ 0 & 0&1 & 4&| & 4 &1 & -2 & 0\\ 0& 0& 0 & 1 &|& 3 & 1/2 & -1& -1/2 \end{bmatrix}$


$R3=R4 \times -4 +R3$
$\begin{bmatrix} 1 & 0 & 0 & 0 &|& -2 &-1/2 & 1 & 1/2\\ 0 &1 & 0 & 0&|& 1& 1/2 &0 & -1/2\\ 0 & 0&1 & 0&| & -8 &-1 & 2 & 2\\ 0& 0& 0 & 1 &|& 3 & 1/2 & -1& -1/2 \end{bmatrix}$


The inverse is
$\begin{bmatrix} -2 &-1/2 & 1 & 1/2\\ 1& 1/2 &0 & -1/2\\ -8 &-1 & 2 & 2\\ 3 & 1/2 & -1& -1/2 \end{bmatrix}$
